Y-line connector
Y-line connector

Y-line connector

Size：1/4" and 3/8"
Application：Filter, RO system etc......

AOI system - 100% make sure the quality meets our requirements.
Certificated by NSF, ISO13485, ISO9001.

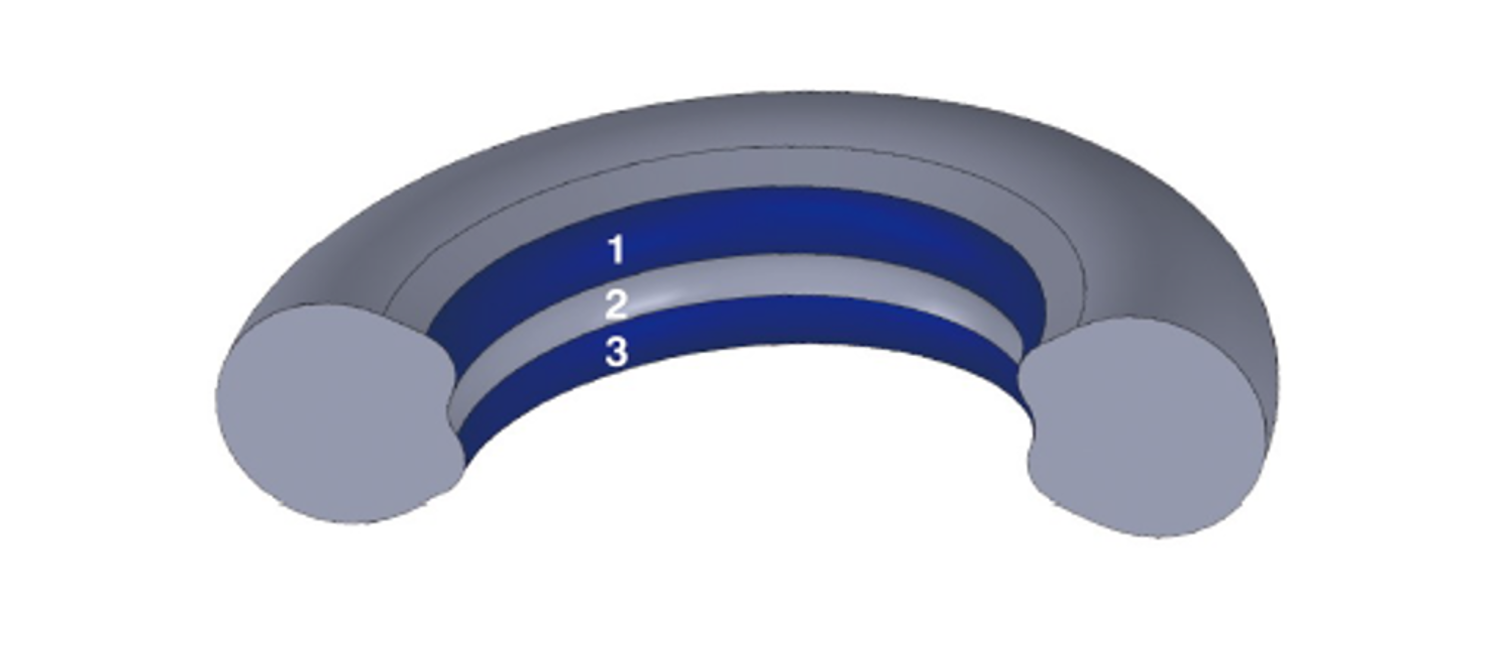

  • Patent O ring.
    Patent No.: M558316
    - Leak-free by dual layer O ring -

    Advantages：
    Food grade material EPDM/ Dual layer O-Ring/ 100% leak free/ Weathering resistance/ Oxygen Ated-solvent resistance/ Water resistance/ Ozone resistance/ Heat resistance/ Abrasion resistance/ Flame resistance

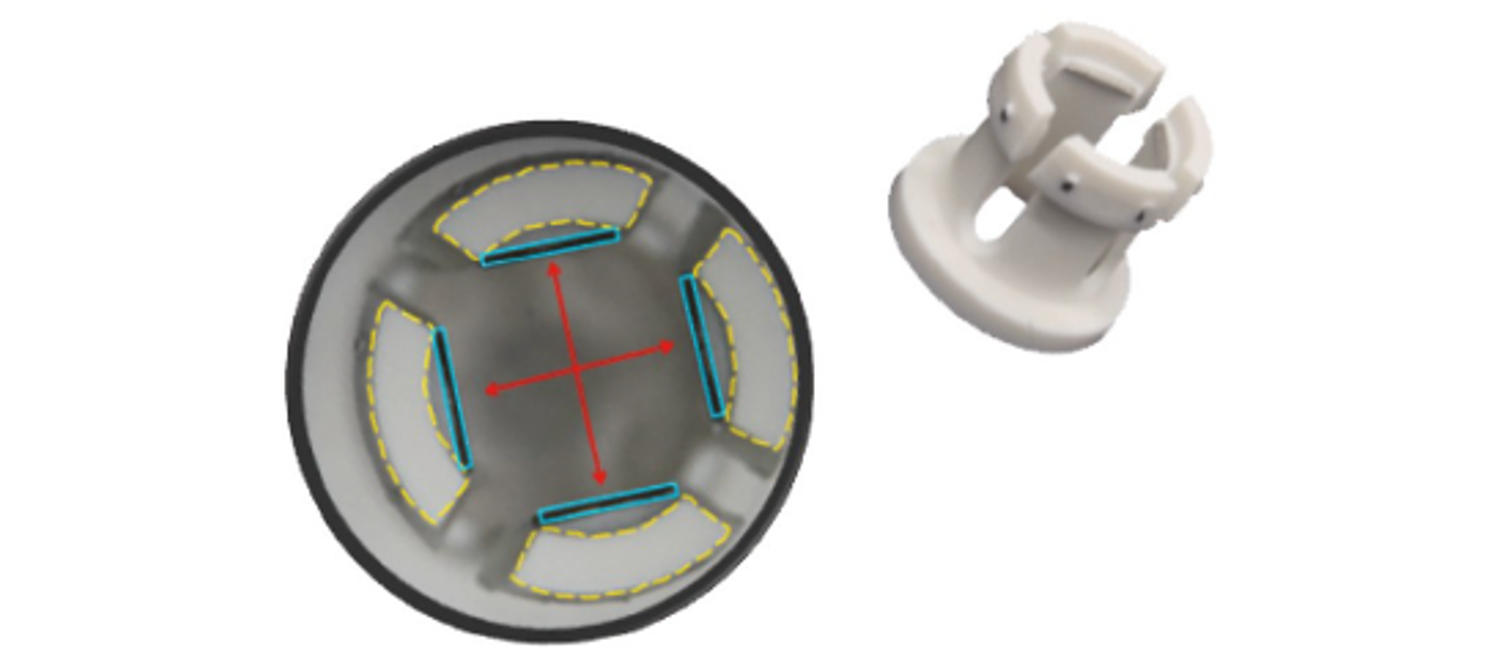

  • Collet
    - SUS 304 with square shape, provides great grip.
    - Automated production
    - 100% inspection.

    To provide the best quality of collet, we apply the AOI system.
  • Inspection by:

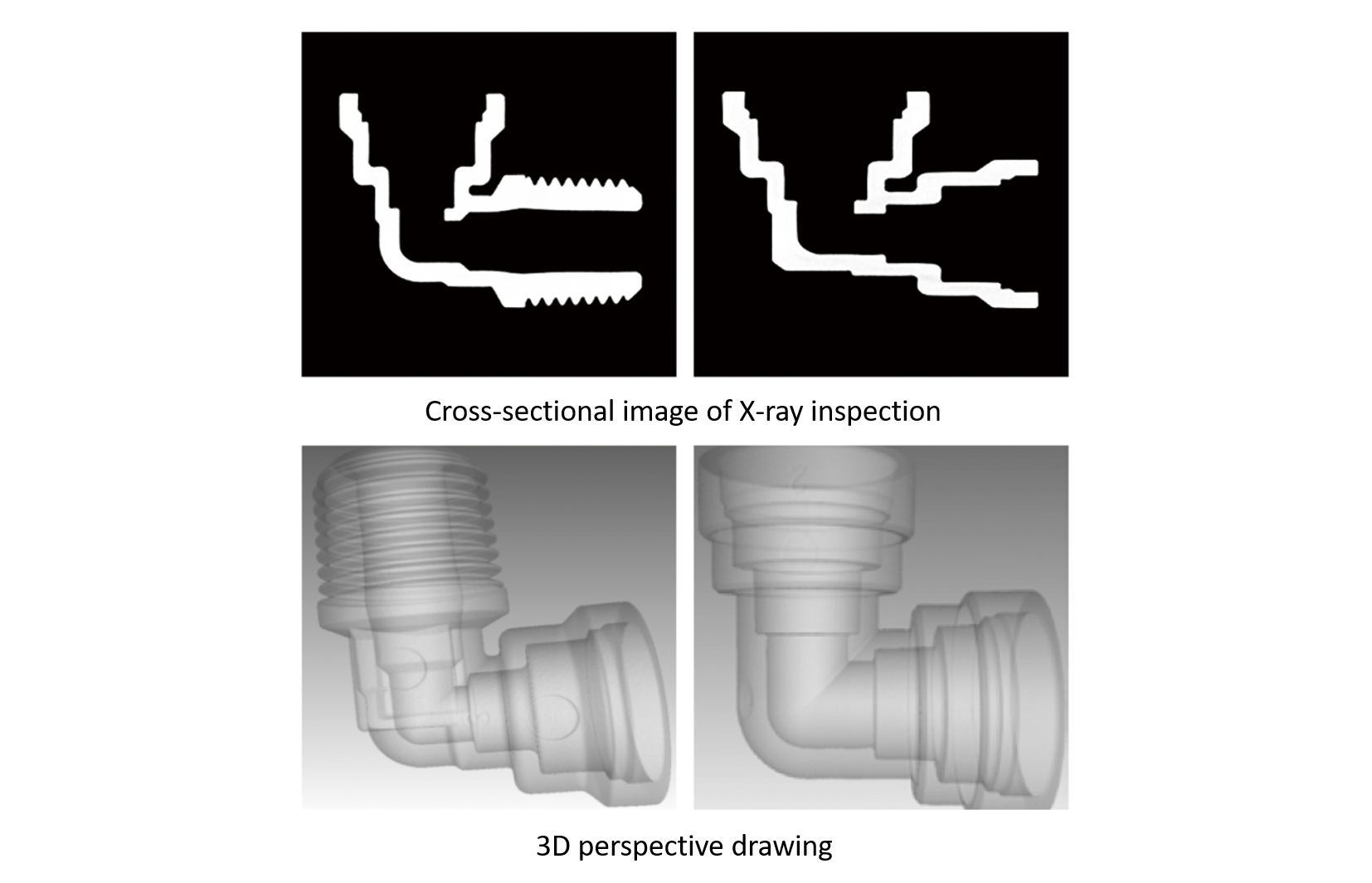

    ZEISS X-RAY
    - Check void, scrap NG part immediately
    - Check the structure, and make sure meet the requirement

    ZEISS CMM
    - All dimensions inspected, make sure the dimension meet the requirement.

    -Link to equipment introduction-

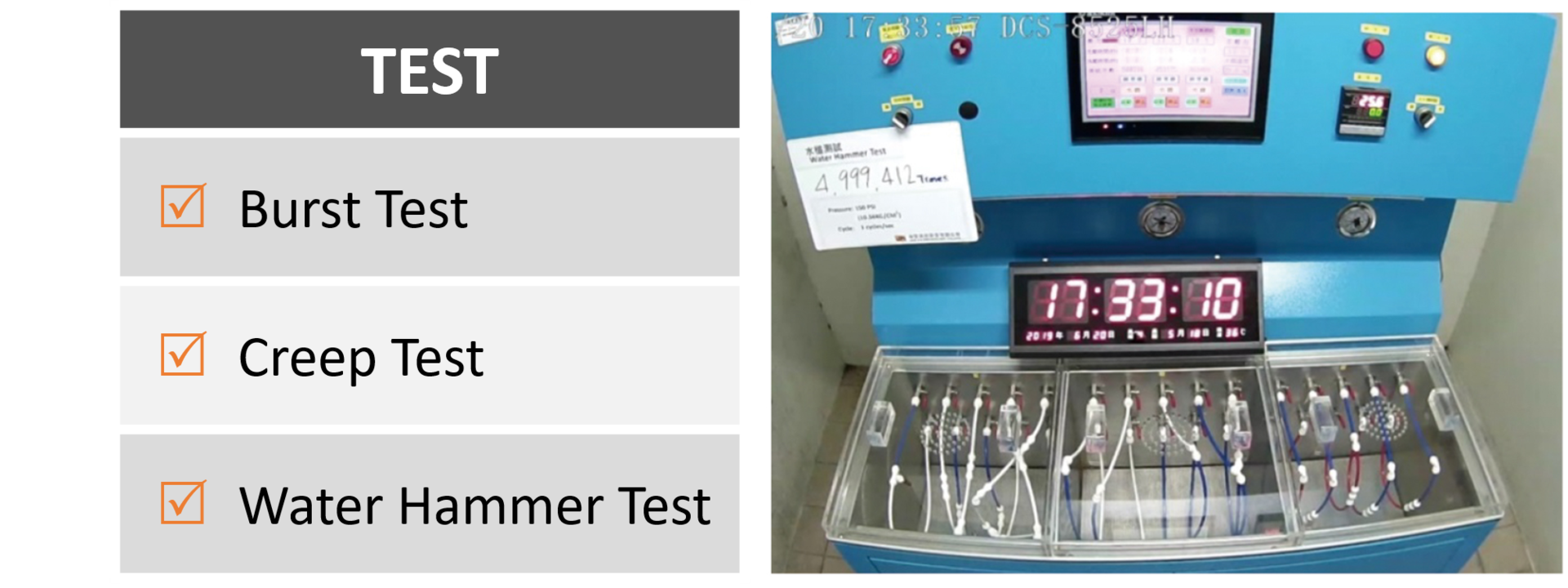

  • Function test for every batch:
    - Burst test: 500psi for 30min
    - Creep test: 500psi for 30min
    - Water hammer test: 160psi for 150 thousand times.
