Guide to Optical Fiber Transceivers: Definitions, Types, and Applications

Keyword: fiber transceiver types, what is optical transceiver

An optical fiber transceiver is an essential component in fiber optic communication systems. It integrates both a transmitter and a receiver into a single module, enabling two-way conversion between electrical and optical signals. These devices are widely used in data centers, telecommunications networks, and enterprise infrastructures due to their efficiency in long-distance and high-bandwidth data transmission.
This article provides a comprehensive overview of optical fiber transceivers, including their definition, structure, major types and common use cases. Whether you're upgrading existing systems or designing a new solution, understanding the differences between transceiver types is key to making informed purchasing decisions.


What is an Optical Fiber Transceiver?

·Definition

An optical fiber transceiver is a device that converts electrical signals (e.g., from Ethernet) into optical signals for transmission through fiber optic cables and vice versa. It combines a transmitter (Tx) and a receiver (Rx) in one compact module and supports full-duplex communication.
These transceivers are commonly used in high-speed networks such as data centers, telecom backbones, and enterprise networks, offering high reliability and transmission efficiency over long distances.

·Key Components

An optical transceiver module consists of four primary components:

1. Housing: Typically made from zinc alloy or stainless steel, the casing protects internal components and provides interfaces for both electronic and optical connections.
2. Optical Sub-Assembly (OSA): Comprises TOSA (Transmitter Optical Sub-Assembly) and ROSA (Receiver Optical Sub-Assembly), responsible for converting electrical signals into optical signals and vice versa.
3. Electrical Sub-Assembly (ESA): Includes PCBs, driver ICs, and amplifiers, which process and modulate the electrical signals for laser operation and signal recovery.
4. Connectors: The electrical connector interfaces with the host system (e.g., switch, router), while the optical port connects to external fiber optic cables.

·How It Works?

A fiber transceiver operates by converting electrical signals into optical signals for transmission over fiber optic cables, and then reversing the process at the receiving end.

1. Transmission (Tx): The process starts at the transmission end (Tx), where electrical signals modulate a laser diode to emit light, converting data into an optical signal sent through a fiber optic cable.
2. Fiber Transmission: The signal travels via single-mode or multi-mode fiber, depending on distance and bandwidth needs—single-mode for long-range, multi-mode for shorter, cost-effective setups.
3. Reception (Rx): At the receiving end (Rx), a photodetector converts the light back into an electrical signal, which is passed to the host device for further processing.

This process enables high-speed, long-distance communication with minimal signal loss and electromagnetic interference.

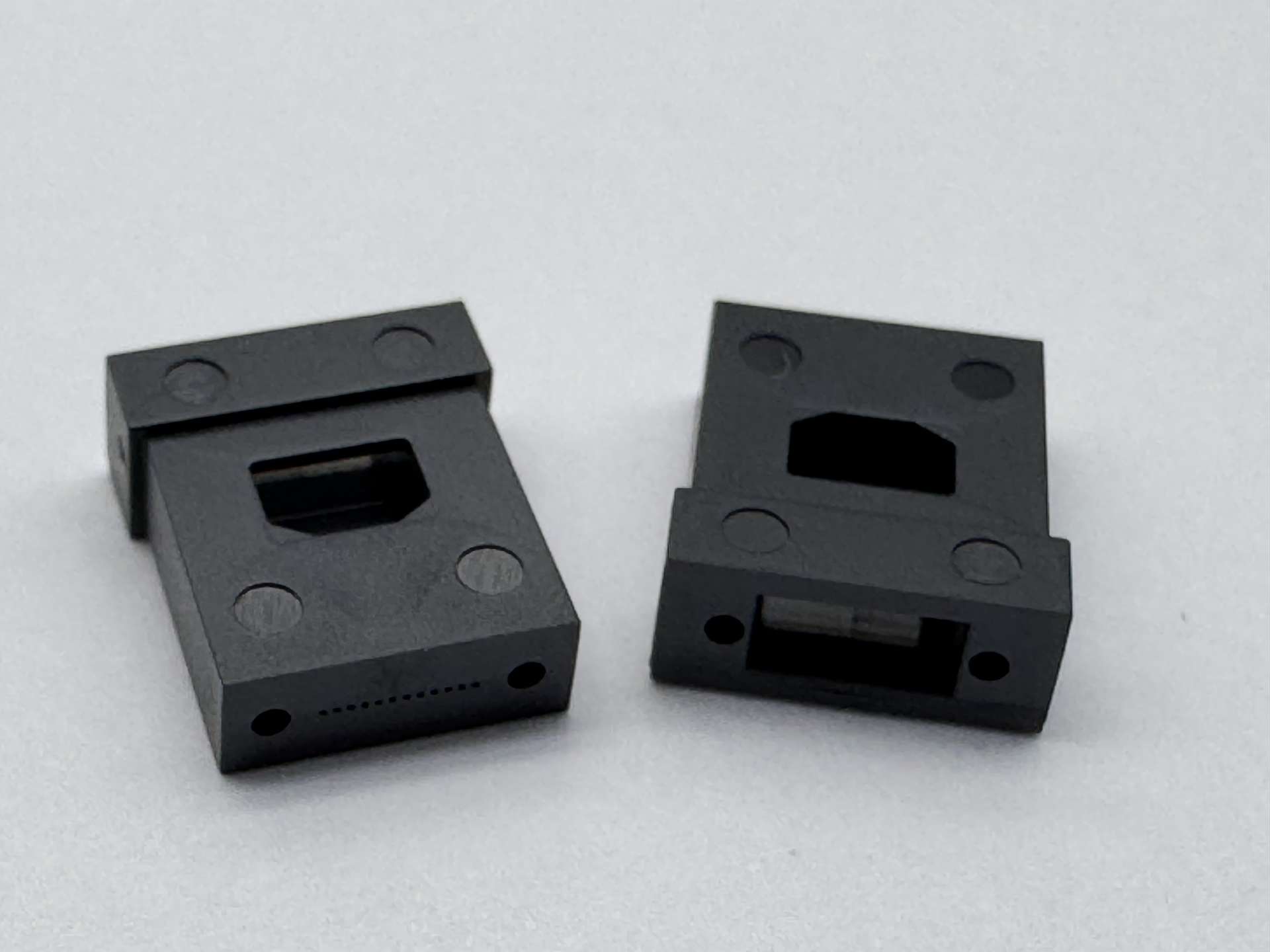

▲5G Fiber Connector & Transceiver produced by Jun He Technology.
圖片來源：https://www.jun-he.com.tw/EN/products-details/no/1660036943001


Types of Optical Fiber Transceivers

1.By Form Factor (H3)

Optical transceivers are available in various form factors, each designed to meet specific space, application, and speed requirements. Common types include:

• SFP (Small Form-factor Pluggable)
• SFP+ (Enhanced Small Form-factor Pluggable)
• XFP (10 Gigabit Small Form-factor Pluggable)
• QSFP (Quad Small Form-factor Pluggable)
• CFP (C Form-factor Pluggable)

Form Factor	Description	Speed Range	Applications
SFP	Small form-factor pluggable, hot-swappable	100 Mbps – 4/6 Gbps	Ethernet, Fibre Channel
SFP+	Same size as SFP but supports higher speeds	10 – 16 Gbps	10GbE, data centers
XFP	10 Gigabit transceiver, larger than SFP+; supports full-duplex	10 Gbps	Telecom, enterprise backbones
QSFP	Quad-channel SFP; high-density and high-speed	40 Gbps	Backbone, aggregation
CFP	Larger form factor; supports 100Gbps	100 Gbps	Core networks, long haul

Choosing the right form factor is essential to ensure compatibility with networking hardware such as switches, routers, and servers, and to meet the performance and scalability needs of your infrastructure.

2. By Data Rate (H3)

In addition to physical form factors and fiber types, optical transceivers are commonly categorized based on their data transmission speeds.

Speed	Form Factor	Applications	Remarks
1 Gbps	SFP	Gigabit Ethernet, small/medium networks	Ideal for short to medium distances
10 Gbps	SFP+, XFP	Data centers, telecom backbone	Widely adopted for stable performance, while XFP is earlier gen; SFP+ preferred for compact size
25 Gbps	SFP28	High-speed server links	Higher bandwidth and energy efficiency
40 Gbps+	QSFP, QSFP28	Large data centers, cloud networks	Multi-channel, high-performance links

This classification helps users select the right module depending on performance requirements, network infrastructure, and application needs.

3.By Fiber Type

Another important way to classify optical transceivers is by the type of fiber optic cable they are designed to work with. The two primary categories are Single-Mode Fiber (SMF) and Multi-Mode Fiber (MMF).

Fiber Type	Key Features	Use Cases	Distance
Single-mode (SMF)	Narrow core (8-10μm), low loss, long reach	Inter-city networks, long haul	Up to 100 km or more
Multi-mode (MMF)	Wider core (50/62.5μm), higher loss, lower cost	LANs, short-range data center links	Typically < 500 m

It’s important to select the right transceiver for your application based on fiber type, as each is optimized for different distances, bandwidth requirements, and cost considerations.


Applications of Optical Fiber Transceivers

 Optical fiber transceivers are deployed in various industries and infrastructures:

• Data Centers and Cloud Computing: Used to connect servers, switches, and storage systems within and across racks, fiber transceivers enable ultra-fast, low-latency data exchange that supports virtual machines, cloud storage, and high-density computing workloads.
• Telecommunications and Internet Service Providers (ISPs): Deployed in metro, access, and core networks to deliver high-bandwidth services such as 5G, IPTV, and FTTH. Fiber transceivers ensure long-distance signal transmission and carrier-grade network stability.
• Enterprise and Campus Networks: Facilitate reliable, high-throughput communication between departments or buildings in a corporate campus. They support centralized data access, VoIP, video conferencing, and enterprise cloud platforms with minimal signal interference.

For mission-critical environments, choosing high-quality transceivers that meet international standards is essential to ensure network stability and scalability.
Jun He Technology offers professional-grade 5G fiber connectors and transceivers, equipped with X-ray and CMM (Coordinate Measuring Machine) inspection systems for enhanced signal integrity and precision. These products are particularly suited for cutting-edge applications like autonomous vehicles, industrial IoT, and commercial drones.


▲5G enables faster, low-latency connectivity for advanced technologies.
https://www.jun-he.com.tw/EN/products-details/no/1660036943001


FAQ

Q1: What’s the difference between a fiber transceiver and a media converter?

A:

• A fiber transceiver is a plug-in module used in devices like switches or routers. It converts electrical signals to optical signals (and vice versa) and is installed directly into the equipment.
• A media converter is a standalone device used to connect different network types—typically fiber to copper (RJ45). It’s ideal for bridging networks without upgrading all hardware.
• The key difference lies in their form and function—transceivers are modular and embedded, while media converters are external and used for bridging network segments.

Q2: What are the common transceiver form factors?
A: Popular types include SFP, SFP+, XFP, QSFP, and QSFP28, each designed to support specific data rates and applications. For more details, refer to the section above that explains the types of optical transceivers categorized by form factors, data rates, and fiber types.



Conclusion

Optical fiber transceivers are critical components in modern networking infrastructure. Whether used in data centers, telecom backbones, or enterprise environments, they enable fast, reliable data transfer through efficient signal conversion.
Jun He Technology specializes in the production of high-precision 5G optical transceivers and connectors, with advanced manufacturing capabilities and high-end inspection tools like X-ray and 3D metrology. Our solutions support the growing needs of industries like smart transportation, UAV communication, and next-generation networking.
Explore our product offerings and contact us for more professional advice.
